Rectangle Tube Laser Cutting Services in Pune

Enquire Now

Hi Tech Tube Laser Cutting is a trusted provider of Rectangle Tube Laser Cutting Services in Pune, offering precision laser cutting solutions and jobwork for a wide range of industries. We are an ISO-certified, service-oriented company committed to delivering high accuracy, clean finishes, and consistent quality in every project.

With over 15 years of industry experience, we support manufacturers by helping them streamline production, reduce material waste, and improve the structural strength of their products through advanced laser technology.

What is Rectangle Tube Laser Cutting?

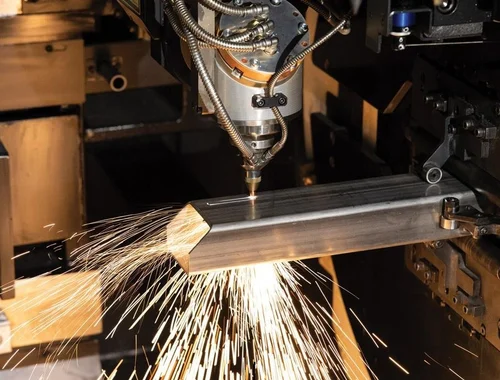

Rectangle Tube Laser Cutting is a precision processing technique of cutting metal pipes that are of a rectangle shape with the help of a focused beam of laser. With the technology, intricate shapes, holes, and notches can be cut in the tube with very high precision, and the edges are clean. It supersedes traditional techniques such as involved in sawing/drilling and gives it a much faster and professional finish.

Types of Rectangle Tube Laser Cutting

We serve as Rectangle Tube Laser Cutting services in Pune, we provided different types according to operations which are given below.

by Operation & Profile

Flat and Tube Combination Cutting: These machines are able to handle both flat sheets and tubular profiles, commonly on smaller jobs that are multipurpose.
Vector Cutting and Marking: Cutting completely through (vector cut) or merely marking the surface (vector mark) by modifying power/speed.
Raster Engraving: The image or text is engraved on the tube.
CNC Tube and Pipe Cutting: Special machines are used to cut the different shapes Round, Square, rectangular, oval.
3D Tube Laser Cutting: This technology substitutes several tools (saws, drills) to cut intricate profiles and edges (milling, chamfering) at once.

Material Capabilities of Rectangle Tube Laser Cutting

Metals: Mild steel (MS), Stainless steel (SS), Aluminum, Brass, Copper, Galvanized steel.
Thickness & Size: Can work with a wide variety, typically thin-walled to thick profiles (e.g. up to 8" square/rectangular, 10" round diagonally).

Working Process of Rectangle Tube Laser Cutting service providers in Pune

Stage	Process Step	Details & Technical Requirements
1. Design	CAD/CAM Programming	3D models (STEP/IGS) or 2D files (DXF/DWG) are imported. Software calculates the "unfolded" path for all four sides of the rectangle.
2. Setup	Nesting & Toolpath	Parts are "nested" along the tube length to minimize scrap. Weld seam detection is often activated to avoid cutting through the tube's seam.
3. Loading	Clamping & Centering	The tube is loaded into a pneumatic or servo-electric chuck. For rectangular tubes, automatic centering is critical to compensate for any structural twisting.
4. Calibration	Height Sensing	A capacitive sensor maintains a constant distance between the nozzle and the tube surface, even as the tube rotates 90° to the next face.
5. Cutting	Laser Execution	A high-power fiber laser (typically 1kW–6kW) pierces and cuts. Nitrogen is used for a silver finish (SS), while Oxygen is used for Mild Steel (MS).
6. Finishing	Unloading & Deburring	Cut parts are automatically discharged. Because laser cutting is high-precision, edges are usually burr-free and ready for welding.

Leading Rectangle Tube Laser Cutting Services in Pune

Our brand is built on reliability, technical expertise, and precision engineering. In metal fabrication, even a small error can affect the entire assembly, which is why we ensure exact dimensions and perfect edges on every rectangular tube.

Using state-of-the-art fiber laser machines, we handle simple to complex rectangular profiles with speed and accuracy. From small jobwork requirements to large-scale industrial projects, our Rectangle Tube Laser Cutting Services in Pune are designed to meet the highest quality standards.

Benefits of choosing us as Rectangle Tube Laser Cutting Jobwork in Pune

As Rectangle Tube Laser Cutting Jobwork in Pune, we provided different benefits according to requirement which are given below.

Clean Edges No Burrs: Laser cuts with high intensity result in a very smooth cut surface that does not need any additional grinding or polishing.
Complex Pattern Capability: A laser can easily cut more complex shapes and ornamental patterns into the metal unlike the traditional mechanical tools.
Material and Cost Efficiency: The laser is narrow in nature and this reduces the amount of metal that goes to waste in the cutting process.
Fast Production: Speed Laser technology is far faster than the manual cutting or the old mechanical techniques of cutting.
High Precision and Accuracy: The laser is guided by a controlled path of the computer to make all the cuts to the exact design.

Applications of Rectangle Tube Laser Cutting Services

We serve as Rectangle Tube Laser Cutting service providers in Pune, it is applicable in different sites which are given below.

Frames Buildings and Construction: Buildings and warehouses are also primarily made with Building and Construction Frames to form the skeletons of the buildings.
Automotive Chassis and Frames: The transport industry involves application of laser cut tubes to construct strong and lightweight cars, buses, and trucks.
Furniture Maker: The modern office and home furnishings are normally made with metal legs and frames that are rectangular.
The Tractors, Harvesters and Farm Machineries: These are based on strong metal frames constructed using the rectangular tubes.
Industrial Racking Systems: The warehouses contain, which are constructed using cut tubes to support huge weights.

Why choose us for Rectangle Tube Laser Cutting in Pune?

Modern Technology: We provide the modern-day laser equipment which makes your product have the best finishing in the market.
On-time Project completion: We highly attach importance to your time, and have streamlined our service workflow.
Personalized Solutions: We ensure that we are in close contact with our clients to know their exact designs and cut them accordingly.

Hi Tech Tube Laser Cutting is among the top Rectangle Tube Laser Cutting services in Pune, delivering precision jobwork backed by 15+ years of experience and ISO certification. From industrial structures to furniture components, our laser cutting solutions ensure accuracy that traditional methods cannot achieve.

Contact us today to experience fast, precise, and cost-effective Rectangle Tube Laser Cutting Service providers in Pune and enhance the quality of your metal fabrication projects.
