Square Tube Laser Cutting Services in Chakan

Enquire Now

Hi Tech Tube Laser Cutting offers prominent Square Tube Laser Cutting services in Chakan, service providers and Jobwork in Chakan. Our experience of more than fifteen years of devoted work has already taught us the techniques of cutting up high-end Square Tube Laser, our specialty services.

The type of business that we deal with is aimed at delivering the best fabrication services that can meet the changing demands of the modern industrial industry. We work with the philosophy of excellence, and our certification bearing the ISO testifies to the fact that all the projects we take care of are of the utmost international quality and accuracy.

What is Square Tube Laser Cutting?

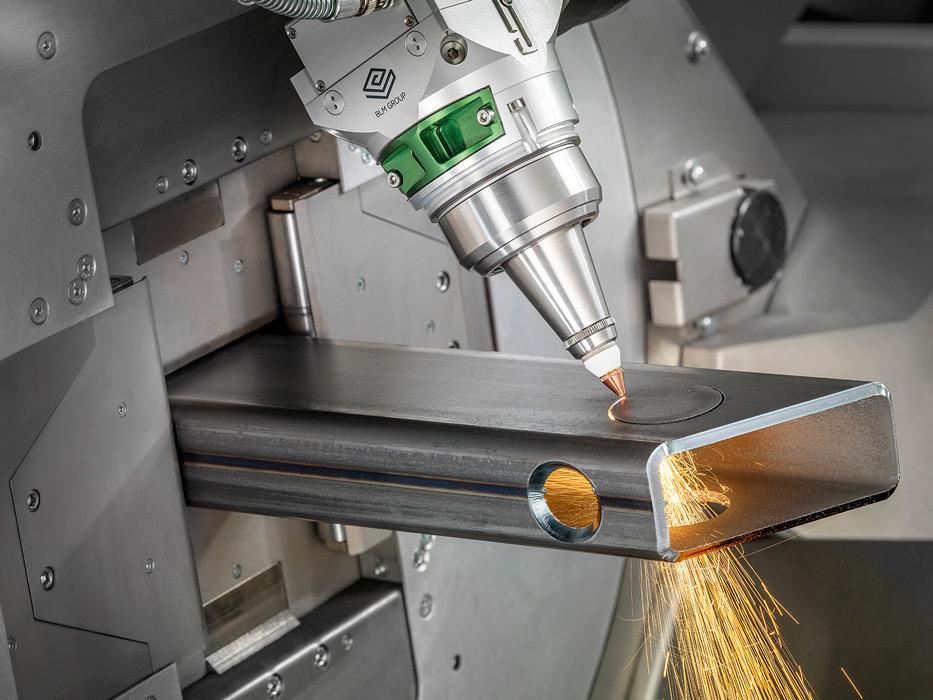

Square Tube Laser Cutting is a highly technical fabrication procedure which subjects metal pipes of square shape to a focus beam of light in order to cut, notch, or punch holes to them. The resulting shapes and clean edges can be extraordinarily accurate and very good without using a physical contact with the metal, making it a computer-controlled technique. Preparation Tube The most effective method to prepare tubes that are to be assembled is to fit them, so that they perfectly fit together to either be welded or bolstered together.

Types of Square Tube Laser Cutting

We serve as Square Tube Laser Cutting services in Chakan, according to material we provided different types which are given below.

by Material

Steel (MS): Mild Steel, Alloy Steel (4130 Chromoly).
Stainless Steel (SS): SS 304, SS 316.
Aluminum (Alu): Drawn Aluminum, extruded.
Copper & Brass: To be used in electricity, decoration or plumbing work.

by Service Offering

2D & 3D Cutting: Sawing through plain profiles (2D) or irregular shapes in length of the tube (3D).
Engraving & Marking: the addition of text, logos or designs.
Edge Preparation: Development of beveled edge or edge profiles that are required in welding.
Custom Profiling: Cutting complex shapes, notches and holes of assemblies.

by Technology

Fiber Laser: This has high power, and is effective in reflective metals such as aluminum, copper and stainless steel.
CO2 Laser: Multipurpose in a wide array of materials, usually on thicker metals.

Working Process of Square Tube Laser Cutting service providers in Chakan

Phase	Step	Technical Action / Detail	Key Objective
I. Digital Input	3D Design Import	CAD files (.STEP or .IGES) are imported into tube-nesting software (like TubesT or BodorPro).	Define precise 3D geometry and hole positions.
I. Digital Input	Nesting & Toolpath	Software arranges parts on the square tube (typically 6m) to minimize "end-waste."	Optimize material yield and prevent head collisions.
II. Physical Setup	Loading & Clamping	The tube is fed into the machine; a Self-Centering Pneumatic Chuck secures the square profile.	Ensure the tube stays perfectly aligned during high-speed rotation.
II. Physical Setup	Touch Sensing (4-Side)	The laser head probes all four sides of the tube to detect any "bow" or "twist" in the material.	Compensate for manufacturing defects in the raw tube.
III. The Cut	Rotary Axis Sync	The machine synchronizes the linear (X/Y/Z) and rotary (B/C) axes for 3D cutting.	Maintain a perpendicular cut even at the corners.
III. The Cut	Assist Gas Injection	Oxygen (for MS) or Nitrogen (for SS/Al) is injected at high pressure 10−18 bar.	Expel molten slag and prevent oxidation for a "weld-ready" finish.
IV. Finishing	Auto-Unloading	Finished parts are released onto a conveyor; the machine automatically moves to the next part.	Prevent surface scratches on the cut parts.
IV. Finishing	Quality Inspection	Dimensions are verified standard tolerance ±0.1 mm to ±0.05 mm.	Ensure perfect fitment for the final assembly.

Prominent Square Tube Laser Cutting services in Chakan

The Square Tube Laser Cutting service is a brand pillar and has been known to convert raw materials into highly complex high precision products. Through the use of modern laser technology, we are able to offer our customers the kind of detail and consistency that is just simply impossible with the traditional forms of cutting. We have in the past managed to finish several projects within different sectors and we have been able to assist our customers to minimize the time needed in production, and enhance the structural strength of their products.

Benefits of choosing us as Square Tube Laser Cutting Jobwork in Chakan

As Square CNC Tube Laser Cutting Jobwork in Chakan, we provided different benefits according to component which are given below.

Extreme Accuracy and Precision: The laser has a digital design that is so detailed that all cuts are the same. This removes the human factor and generates the components in the correct position and shape when assembling them.
Clean and Smooth Edges: Laser cutting offers a very fine finish on the edges of the metal and this can sometimes eliminate the additional grinding or sanding of the metal.
Complex Design Capability: The technology has the capability to easily cut the tricky patterns, slots and holes which would have been impossible or costly to cut using conventional drills.
Increased Production Velocity: The laser is fast and able to achieve several functions such as cutting and hole-punching in one operation. Square Tube Laser Cutting service providers in Chakan saves a lot of time taken to accomplish a project.
Less Material Waste: Since the beam of light is so narrow and the software is created to optimize, one tube is able to be cut into more parts. This is efficient in saving material expenses and making the fabrication process more environmentally friendly.

Applications of Square Tube Laser Cutting Services

We serve as Square Tube Laser Cutting service providers in Chakan, it is applicable in different sites which are given below.

Furniture Manufacturing: Laser-cut square tubes are applied to make the frames of modern office desks, chairs and the shelves. The accuracy means that the furniture would be strong and flat and simple to assemble by the final consumer.
Automotive Chassis and Frames: In the automotive industry, square tubes are sliced and shaped to create protectors and internal frameworks of the vehicles.
Building and Architecture Constructors: In modern buildings, apply laser-cut tubes in the decorations of railings, trusses, and support systems. The possibility to cut the specific angles makes the unique architectural designs that are strong and beautiful.
Fitness and Gym Equipment: Treadmills, weight benches and multi-gym stations have frames constructed of laser-cut square tubes in Square Tube Laser Cutting Jobwork in Chakan.
Industrial Racking Systems Warehouses: These are the same cut tubes that are used in the construction of high-capacity storage racks and floors. The attachments formed between the parts with the help of the laser make the racks extremely steady and simple to place on-site.

Why choose Us for Square Tube Laser Cutting in Chakan?

High Technology: We have up-to-date laser equipment that is used to make sure that your designs are handled in a manner that is as precise as possible.
One-Stop Service Provider: Basic cuts to elaborate notches, we offer one roof to all types of services.
On Time Project Delivery: We know what deadlines matter and work effectively to make sure that your parts can be at hand when you require them.

Hi Tech Tube Laser Cutting is well-known as Square Tube Laser Cutting services in Chakan, service providers and Jobwork in Chakan. Remodel your production line with the accuracy of Square Tube Laser Cutting with us. Being your longtime partner in Chakan since the year 2008, we can give your most intricate designs life and do so in a way that is highly accurate and fast.

Our processes are also ISO-certified and they are guaranteed to be flawless in every cut and assist you in making better products that are stronger. Make your brand exceptional through excellent fabrication that differentiates your brand among others. Hi Tech is the company to partner with and see the future of metal cutting!

(FAQs)

Square tubes of different metals such as stainless steel, mild steel and Aluminum can be processed. The lasers that we have developed can deal with the material densities of your choice to meet your project needs.

Although it is quicker with a digital drawing, our group can also help with a conversion of your ideas into a format that can be read by a machine. This makes sure that the physical product that you have ended up with is the one that you have envisioned.

Yes, our laser appliance can cut holes and slots to any side of the square tube at different angles. This slackness works best in designing interlocking joints or special mounting points to your equipment.
